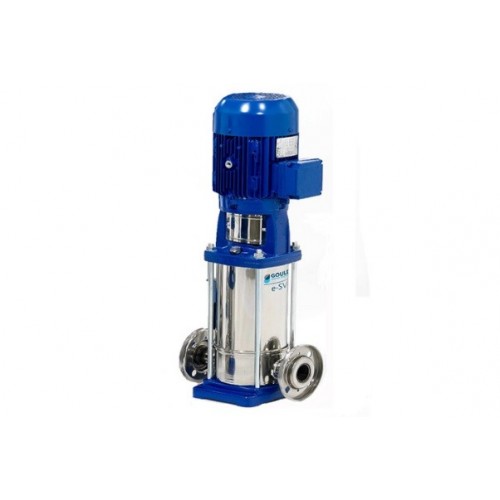

Water Miser Pump with Motor*

  • Water Miser Pump with Motor*

Pump PN: 16-100206

Vertical Multi-Stage Pump, 1 ¼” Connection, 60Hz, 2Pole, 3500RPM, Viton™ Shaft Seal, 56C Motor Frame Size, 4 Stages, 26 GPM Nominal Flow

Capacity Up to 725GPM
Configuration Round – 304SS
Connections/Discharge 1-1/4”
Heads to (Feet) Up to  1200 Feet
Hz 60
Maximum Operating Temperature      -20°F to 250°F (-30°C to 120°C)
Model Number Liquid End Only 16100206
Motor Frame Size 56C
Nominal Flow 26GPM



Motor PN:16-100647

Enclosure  XPFC
Frame 56C
Frame Material Steel
Synchronous Speed 3600RPM @ 60 HZ
Output @ Frequency                               1.0 HP @50HZ / 1.5 HZ @ 60HZ
Voltage 380V @ 50HZ/230V @ 60HZ
XP CLASS / GROUP CLI GR D
XP DIVISION Division1
Pulley Code C-Face



*Sold separately (if only the pump or motor is needed)



Photo of Installed Pump & Motor
